BACKPRO farm

What is BACKPRO farm?

Gardening automation system

BACKPRO farm is a system to manage the garden only with a smartphone using control system of HMI automation system, a patented technology of BACKPRO Co., Ltd.

Scroll to the left and right to see the contents.
process
Main components
  • Multi environment controller

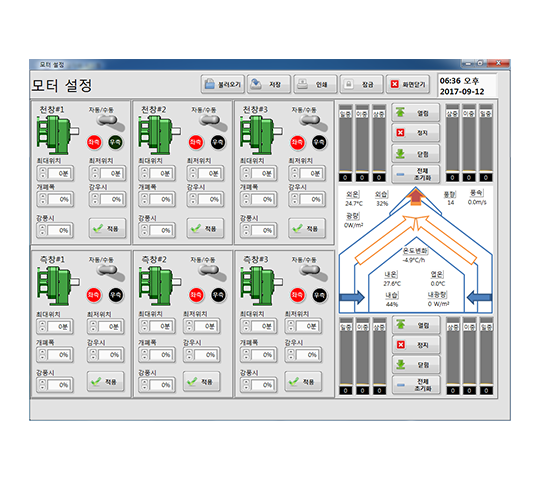

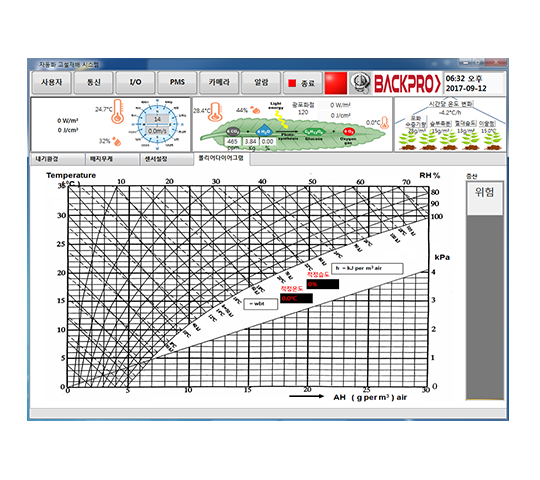

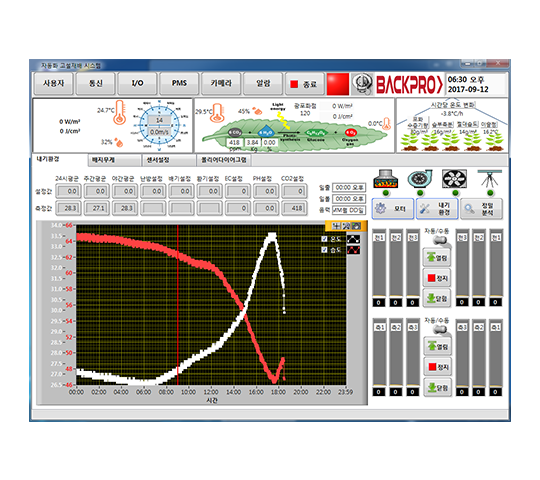

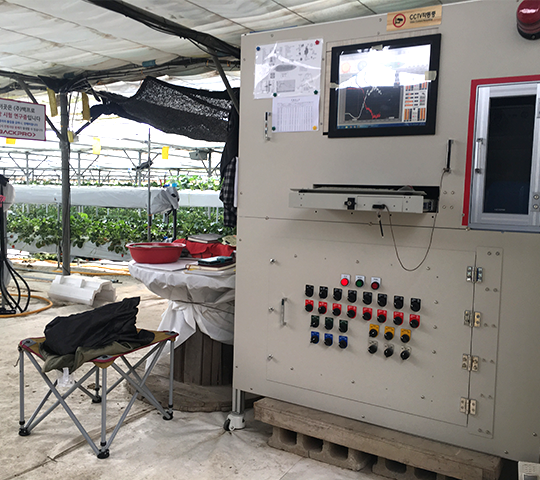

    Multi environment controller

    ICT gardening controller ‘BCS-ICT’ of BACKPRO Co. Ltd., provides better gardening experience with HMI technology based on WINDOWS GUI, which enables an automatic control of CO2, opener, heater, and nutrient solution control systemsystem.

    Multi environment controller Multi environment controller Multi environment controller Nutrient solution control system
  • Nutrient solution control system
    Nutrient solution management system

    It helps to improve washing experience by controlling temperature of washing water that is channeled to each section through multi-directed brush. It is a process to wash out all the pollutants including hair, dust and urine on the surface of mensuration. It has better washing function because the water can filter all small particles with very fine net.

    Nutrient solution control system Nutrient solution control system Nutrient solution control system

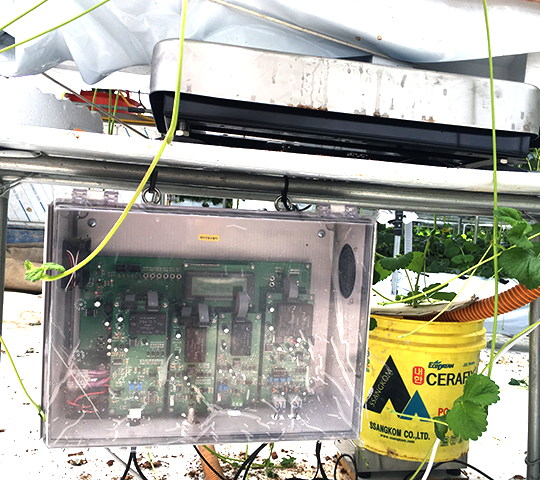

  • Culture medium measuring equipment

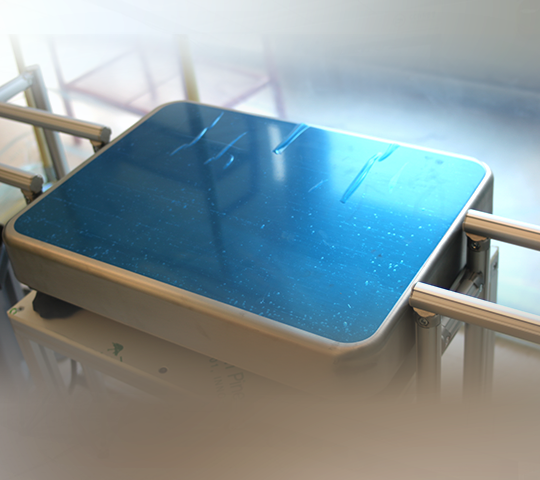

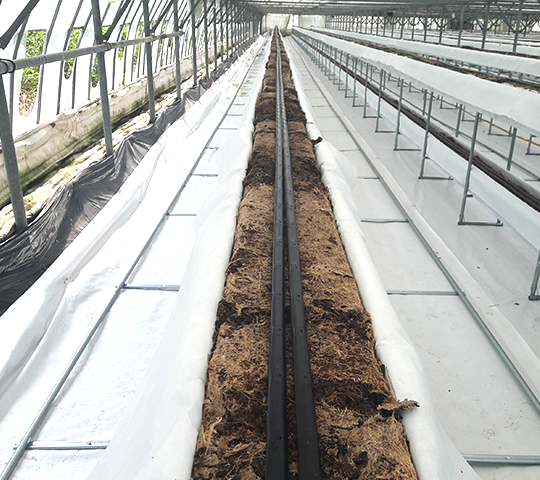

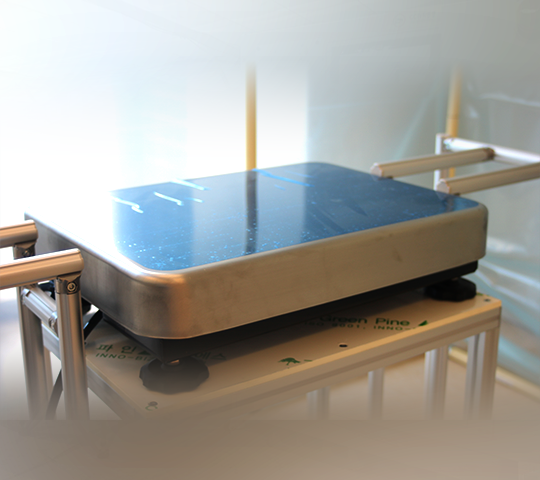

    Culture medium measuring equipment

    BACKPRO’s measuring equipment and measure database on PH and EC supplied to the produce through the sensor on culture medium, and therefore provides nutirition best to yield high-quality produce.

    Culture medium measuring equipment Culture medium measuring equipment Culture medium measuring equipment
Other components
Name Details
Measurement scale Inside Temperature, humidity, CO2, Nutrient solution measurement(EC concentration, PH), sensor
Outside Temperature, humidity, wind direction and speed, precipitation, radiation
Environment controller Lighting Ventilation and lighting, Hot water and water for heating, AC/DC motor, LED
Big data management Environment, monitoring and produce DB management system
